Exploring the Moon’s Shadowed Regions Using Beamed Energy

In less than three years, astronauts will return to the Moon for the first time since the Apollo Era. As part of the Artemis Program, the purpose is not only to send crewed missions back to the lunar surface to explore and collect samples. This time around, there’s also the goal of establishing vital infrastructure (like the Lunar Gateway and a Base Camp) that will allow for “sustained lunar exploration.”

A key requirement for this ambitious plan is the provision of power, which can be difficult in regions like the South Pole-Aitken Basin – a cratered region that is permanently-shadowed. To address this, a researcher from the NASA Langley Research Center named Charles Taylor has proposed a novel concept known as “Light Bender.” Using telescope optics, this system would to capture and distribute sunlight on the Moon.

The Light Bender concept was one of 16 proposals that were selected for Phase I of the 2021 NASA Innovative Advanced Concepts (NIAC) program, which is overseen by NASA’s Space Technology Mission Directorate (STMD). As with previous NIAC submissions, those proposals that were selected represent a broad range of innovative ideas that could help advance NASA’s space exploration goals.

Conceptual illustration of permanently shadowed, shallow icy craters near the lunar south pole. Credits: UCLA/NASA

In this case, the Light Bender proposal addresses the needs of astronauts who will be part of the Artemis missions and the “Long-Term Human Lunar Surface Presence” that will follow. The design for Taylor’s concept was inspired by the heliostat, a device that adjusts to compensate for the Sun’s apparent motion in the sky so that it keeps reflecting sunlight towards a target.

In the case of the Light Bender, Cassegrain telescope optics are utilized to capture, concentrate, and focus sunlight while a Fresnel lens is used to align light beams for distribution to multiple sources located at distances of 1 km (0.62 mi) or more. This light is then received by photovoltaic arrays measuring 2 to 4 m (~6.5 to 13 ft) in diameter that convert the sunlight into electricity.

In addition to habitats, the Light Bender is capable of providing power to cryo-cooling units and mobile assets like rovers. This kind of array could also play an important role in the creation of vital infrastructure by providing power to In-Situ Resource Utilization (ISRU) elements, such as vehicles harvest local regolith for use in 3-D printer modules (that will use it to build surface structures). As Taylor described in his NIAC Phase I proposal statement:

“This concept is superior to alternatives such as highly inefficient Laser Power Beaming, as it only converts light to electricity once, and to traditional power distribution architectures that rely on mass intensive cables. The value proposition of Light Bender is an ~5x mass reduction in mass over traditional technological solutions such as Laser Power Beaming or a distribution network predicated on high voltage power cables.”

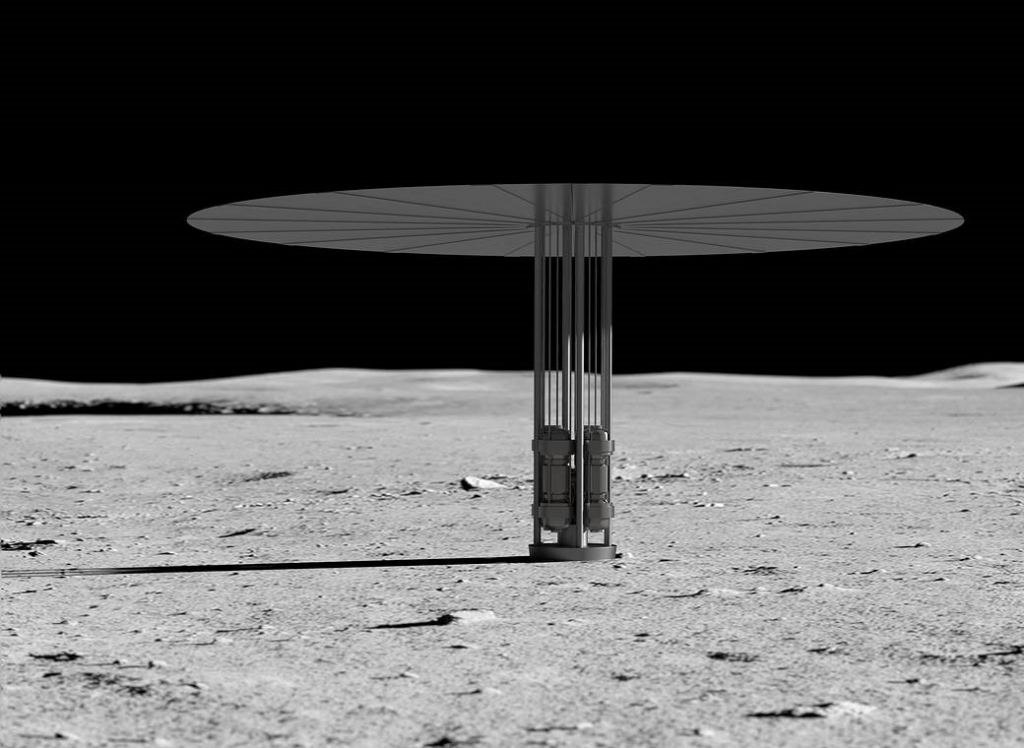

Illustration of a conceptual fission surface power system on the Moon. Credits: NASA

But perhaps the biggest draw to such a system is the way it can distribute power systems to permanently shaded craters of the Moon’s surface, which are common in the Moon’s southern polar region. In the coming years, multiple space agencies – including NASA, ESA, Roscomos, and the China National Space Agency (CNSA) – hope to establish long-term habitats in the area because of the presence of water ice and other resources.

The level of power the system provides is also comparable to the Kilopower concept, a proposed nuclear fission power system designed to enable long-duration stays on the Moon and other bodies. This system will reportedly provide a power capacity of 10 Kilowatt-electric (kWe) – the equivalent of one thousand watts of electric capacity.

“In the initial design, the primary mirror captures the equivalent of almost 48 kWe of sunlight,” writes Taylor. “End user electrical power is dependent on the distance from the primary collection point, but back of the envelope analyses suggest that at least 9kWe of continuous power will be available within 1 km.”

On top of all that, Taylor emphasizes that the total amount of power the system can generate is scalable. Basically, it can be increased by simply changing the size of the primary collection element, the size of the receiver elements, the distance between nodes, or by just increasing the total number of sunlight collectors on the surface. As time goes on and more infrastructure is added to a region, the system can be scaled to adapt.

Illustration of NASA astronauts on the lunar South Pole. Credit: NASA

As with all proposals that were selected for Phase I of the 2021 NIAC program, Taylor’s concept will receive a NASA grant for up to $125,000. All Phase I Fellows are now in an initial nine-month feasibility study period, where the designers will evaluate various aspects of their designs and address foreseeable problems that could impact the operations on the concepts once they are operating in the South Pole-Aitken Basin.

In particular, Taylor will focus on how the optical lens could be improved based different designs, materials, and coatings that would result in acceptable levels of light propagation. He will also be assessing how the lens could be designed in such a way that it can deploy autonomously once it reaches the lunar surface. Possible methods for autonomous deployment will be the subject of subsequent studies.

Following the design/feasibility study, an evaluation of architectural alternatives for Light Bender will be performed in the context of a lunar base located near the Moon’s South Pole during sustained lunar surface operations. The primary figure of merit will be the minimization of landed mass. Comparisons will be made to known power distribution technologies such as cables and laser power beaming.

After these feasibility studies are complete, the Light Bender and other Phase I Fellows will be able to apply for Phase II awards. Said Jenn Gustetic, the director of early-stage innovations and partnerships within NASA’s Space Technology Mission Directorate (STMD):

“NIAC Fellows are known to dream big, proposing technologies that may appear to border science fiction and are unlike research being funded by other agency programs. We don’t expect them all to come to fruition but recognize that providing a small amount of seed-funding for early research could benefit NASA greatly in the long run.”

Further Reading: NASA, NASA-JPL
