U.S. To Restart Plutonium Production for Deep Space Exploration

by David Dickinson on March 20, 2013

A marshmellow-sized Pu-238 pellet awaits a space mission. (Credit: The Department of Energy).

A marshmallow-sized Pu-238 pellet awaits a space mission. (Credit: The Department of Energy).

The end of NASA’s plutonium shortage may be in sight. On Monday March 18th,  NASA’s planetary science division head Jim Green announced that production of Plutonium-238 (Pu-238) by the United States Department of Energy (DOE) is currently in the test phases leading up to a restart of full scale production.

“By the end of the calendar year, we’ll have a complete plan from the Department of Energy on how they’ll be able to satisfy our requirement of 1.5 to 2 kilograms a year.” Green said at the 44th Lunar and Planetary Science Conference being held in Woodlands, Texas this past Monday.

This news comes none too soon. We’ve written previously on the impending Plutonium shortage and the consequences it has for future deep space exploration. Solar power is adequate in most cases when you explore the inner solar system, but when you venture out beyond the asteroid belt, you need nuclear power to do it.

Production of the isotope Pu-238 was a fortunate consequence of the Cold War.  First produced by Glen Seaborg in 1940, the weapons grade isotope of plutonium (-239) is produced via bombarding neptunium (which itself is a decay product of uranium-238) with neutrons. Use the same target isotope of Neptunium-237 in a fast reactor, and Pu-238 is the result. Pu-238 produces 280x times the decay heat at 560 watts per kilogram versus weapons grade Pu-239  and is ideal as a compact source of energy for deep space exploration.

Since 1961, over 26 U.S. spacecraft have been launched carrying Multi-Mission Radioisotope Thermoelectric Generators (MMRTG, or formerly simply RTGs) as power sources and have explored every planet except Mercury. RTGs were used by the Apollo Lunar Surface Experiments Package (ALSEP) science payloads left on by the astronauts on the Moon, and Cassini, Mars Curiosity and New Horizons enroute to explore Pluto in July 2015 are all nuclear powered.

Plutonium powered RTGs are the only technology that we have currently in use that can carry out deep space exploration. NASA’s Juno spacecraft will be the first to reach Jupiter in 2016 without the use of a nuclear-powered RTG, but it will need to employ 3 enormous 2.7 x 8.9 metre solar panels to do it.

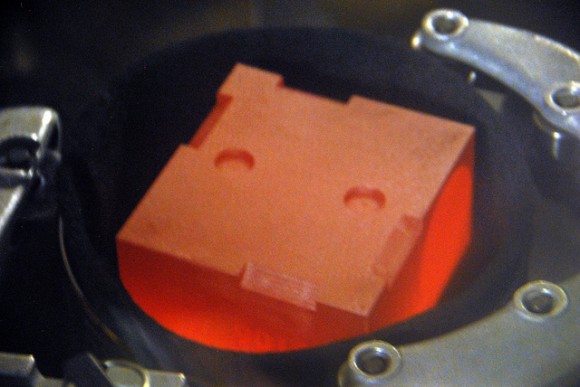

The plutonium power source inside the Mars Science Laboratory's MMRTG during assembly at the Idaho National Laboratory. (Credit: Department of Energy?National Laboratory image under a Creative Commons Generic Attribution 2.0 License).

The plutonium power source inside the Mars Science Laboratory’s MMRTG during assembly at the Idaho National Laboratory. (Credit: Department of Energy/Idaho National Laboratory image under a Creative Commons Generic Attribution 2.0 License).

The problem is, plutonium production in the U.S. ceased in 1988 with the end of the Cold War. How much Plutonium-238 NASA and the DOE has stockpiled is classified, but it has been speculated that it has at most enough for one more large Flag Ship class mission and perhaps a small Scout class mission. Plus, once weapons grade plutonium-239 is manufactured, there’s no re-processing it the desired Pu-238 isotope. The plutonium that currently powers Curiosity across the surface of Mars was bought from the Russians, and that source ended in 2010. New Horizons is equipped with a spare MMRTG that was built for Cassini, which was launched in 1999.

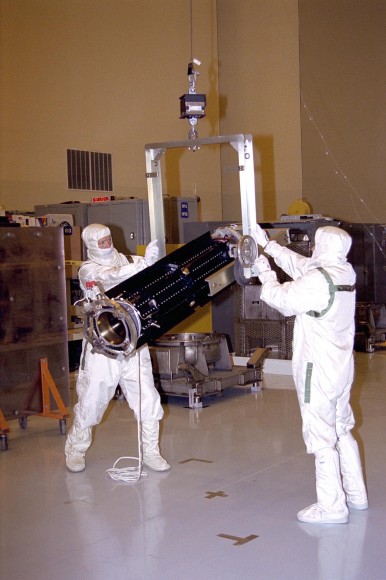

Technicians handle an RTG at the Payload Hazardous Servicing Facility at the Kennedy Space Center for the Cassini spacecraft. (Credit: NASA).

Technicians handle an RTG at the Payload Hazardous Servicing Facility at the Kennedy Space Center for the Cassini spacecraft. (Credit: NASA).

As an added bonus, plutonium powered missions often exceed expectations as well. For example, the Voyager 1 & 2 spacecraft had an original mission duration of five years and are now expected to continue well into their fifth decade of operation. Mars Curiosity doesn’t suffer from the issues of “dusty solar panels” that plagued Spirit and Opportunity and can operate through the long Martian winter. Incidentally, while the Spirit and Opportunity rovers were not nuclear powered, they did employ tiny pellets of plutonium oxide in their joints to stay warm, as well as radioactive curium to provide neutron sources in their spectrometers. It’s even quite possible that any alien intelligence stumbles upon the five spacecraft escaping our solar system (Pioneer 10 & 11, Voyagers 1 & 2, and New Horizons) could conceivably date their departure from Earth by measuring the decay of their plutonium power source. (Pu-238 has a half life of 87.7 years and eventually decays after transitioning through a long series of daughter isotopes into lead-206).

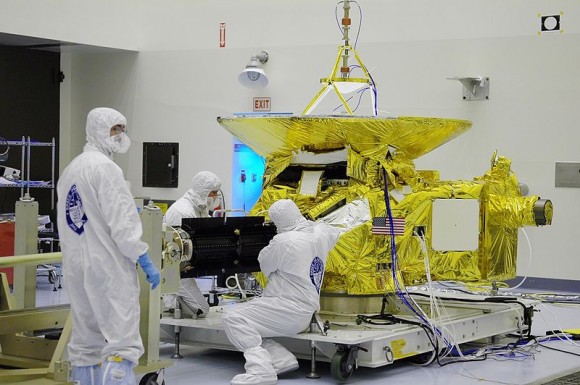

New Horizons in the Payload Hazardous Servicing Facility at the Kennedy Space Center. Note the RTG (black) protruding from the spacecraft. (Credit: NASA/Uwe W.)

New Horizons in the Payload Hazardous Servicing Facility at the Kennedy Space Center. Note the RTG (black) protruding from the spacecraft. (Credit: NASA/Uwe W.)

The current production run of Pu-238 will be carried out at the Oak Ridge National Laboratory (ORNL) using its High Flux Isotope Reactor (HFIR). “Old” Pu-238 can also be revived by adding newly manufactured Pu-238 to it.

“For every 1 kilogram, we really revive two kilograms of the older plutonium by mixing it… it’s a critical part of our process to be able to utilize our existing supply at the energy density we want it,” Green told a recent Mars exploration planning committee.

Still, full target production of 1.5 kilograms per year may be some time off. For context, the Mars rover Curiosity utilizes 4.8 kilograms of Pu-238, and New Horizons contains 11 kilograms. No missions to the outer planets have left Earth since the launch of Curiosity in November 2011, and the next mission likely to sport an RTG is the proposed Mars 2020 rover. Ideas on the drawing board such as a Titan lake lander and a Jupiter Icy Moons mission would all be nuclear powered.

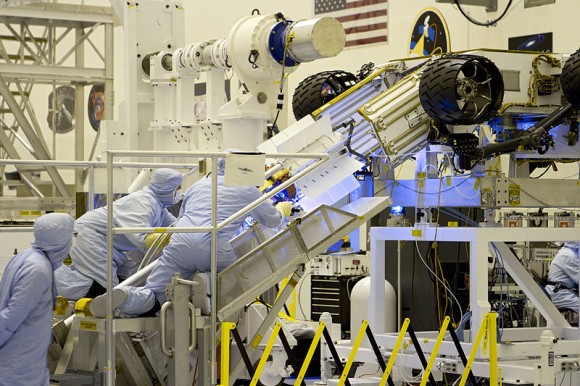

Engineers perform a fit check of the MMRTG on Curiousity at the Kennedy Space Center. The final installation of the MMRTG occured the evening prior to launch. (Credit: NASA/Cory Huston).

Engineers perform a fit check of the MMRTG on Curiosity at the Kennedy Space Center. The final installation of the MMRTG occurred the evening prior to launch. (Credit: NASA/Cory Huston).

Along with new plutonium production, NASA plans to have two new RTGs dubbed Advanced Stirling Radioisotope Generators (ASRGs) available by 2016. While more efficient, the ASRG may not always be the device of choice. For example, Curiosity uses its MMRTG waste heat to keep instruments warm via Freon circulation.  Curiosity also had to vent waste heat produced by the 110-watt generator while cooped up in its aero shell enroute to Mars.

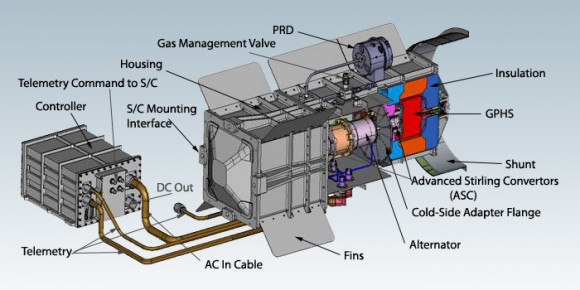

Cutaway diagram of the Advanced Stirling Radioisotope Generator. (Credit: DOE/NASA).

Cutaway diagram of the Advanced Stirling Radioisotope Generator. (Credit: DOE/NASA).

And of course, there are the added precautions that come with launching a nuclear payload. The President of the United States had to sign off on the launch of Curiosity from the Florida Space Coast. The launch of Cassini, New Horizons, and Curiosity all drew a scattering of protesters, as does anything nuclear related. Never mind that coal fired power plants produce radioactive polonium, radon and thorium as an undesired by-product daily.

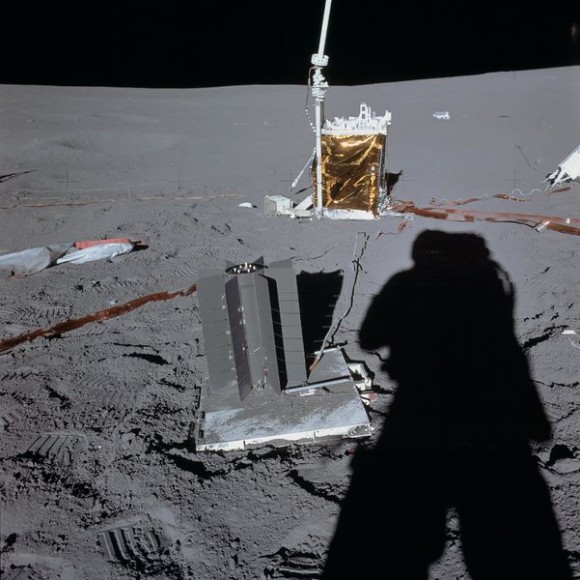

An RTG (in the foreground on the pallet) left on the Moon by astronauts during Apollo 14.  (Credit: NASA/Alan Shepard).

An RTG (in the foreground on the pallet) left on the Moon by astronauts during Apollo 14. (Credit: NASA/Alan Shepard).

Said launches aren’t without hazards, albeit with risks that can be mitigated and managed. One of the most notorious space-related nuclear accidents occurred early in the U.S. space program with the loss of an RTG-equipped Transit-5BN-3 satellite off of the coast of Madagascar shortly after launch in 1964. And when Apollo 13 had to abort and return to Earth, the astronauts were directed to ditch the Aquarius Landing Module along with its nuclear-powered science experiments meant for the surface of the Moon in the Pacific Ocean near the island of Fiji. (They don’t tell you that in the movie) One wonders if it would be cost effective to “resurrect” this RTG from the ocean floor for a future space mission. On previous nuclear-equipped launches such as New Horizons, NASA placed the chance of a “launch accident that could release plutonium” at 350-to-1 against  Even then, the shielded RTG is “over-engineered” to survive an explosion and impact with the water.

But the risks are worth the gain in terms of new solar system discoveries. In a brave new future of space exploration, the restart of plutonium production for peaceful purposes gives us hope. To paraphrase Carl Sagan, space travel is one of the best uses of nuclear fission that we can think of!
