Giant sunspot convulses but all quiet on the aurora front … for now

Sunspot region 1967 is so big it easily popped into view through a "cloud filter" Sunday afternoon Feb. 2. The group is visible with the naked eye properly shielded by a safe solar filter. Details: 350mm lens at f/11, ISO 200 and 1/2000". Credit: Bob King

Sunspot region 1967 is so big I could photograph it through a “cloud filter” Sunday afternoon Feb. 2. The group is visible with the naked eye properly shielded with a safe solar filter such as a #14 welder’s glass. Details: 350mm lens at f/11, ISO 200 and 1/2000″. Credit: Bob King

What a crazy sunspot cycle. Weeks go by with only a few tiny spots freckling the sun, then all at once a monster group big enough to swallow 10 Earths rounds the eastern limb and we’re back in business. I’m happy to report we’ve got another behemoth snapping and crackling with M-class (moderately strong) flares – Active Region 1967, a hunk-a-hunk of burnin’ funk that rounded the solar limb a week ago.

NOAA weather forecasters predict an 80% chance of continued M-flares and a 50% chance over the next 3 days for considerably more powerful X-class flares. This sunspot group has a delta classification magnetic field, the Facebook equivalent of “It’s complicated”.

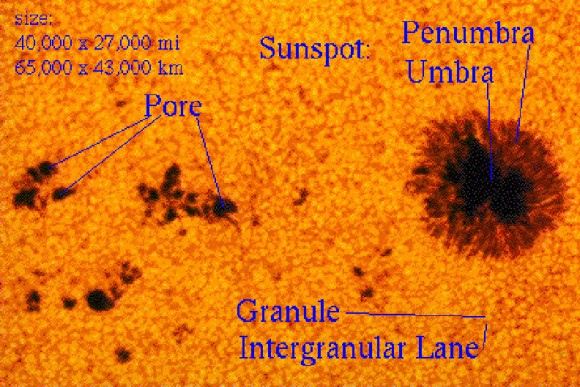

Sunspots are made of a dark umbra and lighter penumbra. Very tiny spots with no penumbrae are called pores. A close up of the sun's photosphere shows a finely granulated texture. Granules are cells of hot gas about the size of Texas that rise from below, cool and sink. Each lasts from 8 to 20 minutes. Credit: NASA

Sunspots are made of a dark umbra and lighter penumbra. Very tiny spots with no penumbrae are called pores. A close up of the sun’s photosphere shows a finely granulated texture. Granules are cells of hot gas about the size of Texas that rise from below, cool and sink. Each lasts from 8 to 20 minutes. Credit: NASA

Sunspots have two parts: a dark core (or cores) called an umbra surrounded by a paler skirt of magnetic energy, the penumbra. They can look impressive like this one, but it’s hard to call a sunspot a “thing”. It’s really more of a locale on the sun’s bright white photosphere where bundles of powerful magnetic energy bob up from below the surface and insulate a region of the sun’s fiery hydrogen gas from the rest of the flaming globe.

We’re talking insulate as in staying cool. While the photosphere cooks at around 11,000 degrees Fahrenheit, sunspots are some 3,000 degrees cooler. That’s why they appear dark to the eye. If you could rip them away from the sun and see them alone against the sky, they’d be too bright to look at safely.

Close up of AR 1967 photographed by the Solar Dynamics Observatory at 8:45 p.m. CST Feb. 4, 2014. Credit: NASA

Close up of AR 1967 photographed by the Solar Dynamics Observatory at 8:45 p.m. CST Feb. 4, 2014. Credit: NASA

A delta-class spot group has umbrae of both polarities, north and south, corralled within the penumbra. Like bringing opposite poles of a two magnets so close they snap together, something similar can happen inside delta-class groups. Only instead of a snap, a titanic thermonuclear explosion called a flare goes kaboom.The biggest flares release the equivalent of a billion hydrogen bombs.

The huge sunspot group 1967 straddles the center of the solar disk on Feb. 3, 2014. Details: 6-inch reflector with Baader solar filter, 1/2000 exposure, ISO 400. Credit: John Chumack

The huge sunspot group 1967 straddles the center of the solar disk on Feb. 3, 2014. The smaller group, AR 1968, lies to its north. Through a filtered telescope, AR 1967 is packed with fascinating details. Photo made with a 6-inch reflector, Baader solar filter, 1/2000 exposure, ISO 400. Credit: John Chumack

We thank our lucky stars for Earth’s iron heart, which generates our protective magnetic shield, and the 93 million miles that separate us from the sun. AR 1967 has paraded right in front of our noses as it rotated with the sun. Yesterday it squarely faced the Earth – a good thing when it comes to the particle blasts that fire up the northern lights. Let’s hope it showers us with a magnetic goodness in the coming days. I really miss seeing the aurora. You too? NOAA space weather forecasters are calling for a 25% chance of auroras in Arctic latitudes overnight Feb. 4-5. We at mid-latitudes will try to be patient.
