Beginner’s Guide to Seeing the International Space Station (ISS)

by VirtualAstro on February 15, 2012

Want to stay on top of all the space news? Follow @universetoday on Twitter

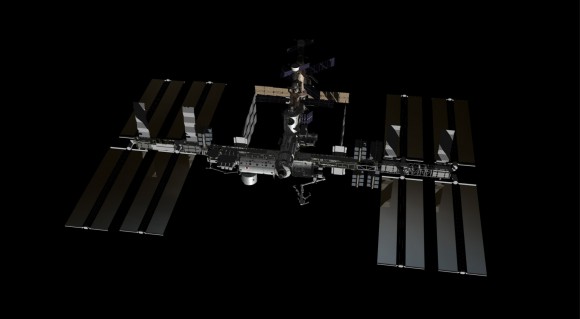

The International Space Station Credit: @VirtualAstro

Most readers of Universe Today are familiar with the International Space Station or “ISS” as it’s often referred to. But just in case you are visiting our site for the first time, the ISS is a huge space station orbiting Earth that serves as an orbital laboratory, factory, testing ground and home; crew members conduct experiments from biology to astronomy, including experiments for prolonged exposure to life in space for future missions to the Moon and beyond.

The ISS is major accomplishment for NASA (US), ESA (Europe), JAXA (Japan) CSA (Canada) and all the countries involved (16 in all). The space station is just over 72 m long by 108 m wide and 20 m high; it is maintained at an orbital altitude of between 330 km (205 mi) and 410 km (255 mi) and travels at an average speed of 27,724 kilometres (17,227 mi) per hour, completing 15.7 orbits per day.

One of the best things about the ISS is that you can see it with your own eyes from Earth! It’s very easy to watch the International Space Station pass over your own backyard!

All you need to do is understand when the ISS is going to be passing over your location and where to look for it in the sky. You can check this by using an ISS pass predictor app or website such as Heavens-Above.

Once you have found out when the ISS will pass over your location, all you need to do a few minutes before the pass is go outside and start looking in the right direction of the sky.

The International Space Station always passes over starting from a westerly part of the sky, but not always from the same point. It can be low on the horizon for some passes and very high others. Most of the apps or websites will tell you what direction in the sky the pass will start and end and how many degrees above the horizon the starting and ending points are. Also included are the highest altitude the ISS will be. For example, if the maximum elevation is listed as somewhere between 74-90 degrees above the horizon, the ISS will be passing almost straight overhead (Just like you learned in geometry, 90 degrees would be straight up). If you aren’t sure about where to look, a good rule of thumb is that your fist outstretched at arm’s length is 10 degrees. If the ISS will be first be seen 40 degrees above the horizon, look four fist-lengths above the horizon. Check apps and websites for where and what track the ISS will take on each individual pass.

When the station passes over it will travel from a westerly direction, heading in an easterly direction. An average good pass can last about 5 minutes.

The ISS looks like an incredibly bright, fast-moving star and can be mistaken for an aircraft. However, the ISS has no flashing lights and it can be much brighter. It seemingly just glides across the sky.

Short passes can last a few seconds to a few minutes and you can see the international space station slowly move into the Earth’s shadow, good bright passes will show the ISS moving across the sky from horizon to horizon.

ISS long exposure photograph over Donnington Castle UK Credit: www.Perfexion.com

The International Space Station usually takes around 90 minutes to orbit our planet, so if you’re really lucky you can get two, or maybe even three or four passes in an evening or morning.

Not only can you see the ISS in the evening but you can also see it in the mornings as both the ISS and Sun are in the ideal position to illuminate the spacecraft at this time. The light we see from the ISS is reflected sunlight.

You can’t watch the ISS pass over during the middle of the day because in the daytime the sky is too bright (although some people with specialized equipment have seen it) and you cannot see the space station in the middle of the night, as it is in the Earth’s shadow and no light is being reflected from it.

The position that the ISS will be in the sky changes every night. The space station does not take the same track or orbital path for each orbit and this change provides good visible passes roughly every 6 weeks in each location on Earth.

Occasionally if a spacecraft such as a Soyuz crew capsule or a Progress resupply vehicle has been sent to the ISS, you will see objects preceding or trailing the station as it moves across the sky. These can either be very close to the station or the distance between the objects can be measured in minutes. To check if there are any other spacecraft with the international space station during a pass, use the pass prediction app, or the Heaven’s Above Site.

Seeing the ISS is an incredible sight! Just remember there are people on board that fast moving point of light!

Good luck!

ISS long exposure photograph Credit: Mark Humpage

About

Astronomer, writer and much much more. The best Astronomy, Space info on twitter. Making Stargazing easy, fun and enjoyable for all.
Creator of Meteorwatch, meteorwatch.org and virtualastro.org

Anonymous February 15, 2012 at 2:18 AM

Another app that works really well is @spaceweather.com called flybys just type in zipcode for the United States though maybe other options,,, never looked.

Anonymous February 15, 2012 at 3:13 AM

Can’t get your Heavens-above link to work, but spaceweather.com works well. Thanks, Mastercope!

Anonymous February 15, 2012 at 9:30 AM

You are right it does not work but Gadi’s link does.

Brian Sheen

Dan Sanderson February 15, 2012 at 9:51 AM

He made it a local link by mistake. Try this : http:://www.heavens-above.com

Anonymous February 15, 2012 at 5:13 AM

calsky.com is the best…its gives position of satellites with star chart, thus its very easy to locate the exact spot the satellite is going to pass.

Gadi Eidelheit February 15, 2012 at 7:37 AM

Hi. I try to watch as many passes of the ISS as I can and often shows it to other people. the responses are more or less is one of the following: 1) It is an airplane 2) Why it has such a strong light… I even like iridium flares more, because you can say to a group something like, you always needs to listen to me and to see that I am right in a few seconds a sudden light will appear and disappear there… marvelous.
I am using http://www.heavens-above.com for predictions. It is a great site
I also wrote my own article about seeing and photographing the trails of the satellites.
It is a shame that there are no shuttles now, because it was very nice to see a double flyby of the ISS and the shuttle, getting closer or further in a day difference, Progress spaceship can also be seen but they are less bright. I also manage to glimps by my sall telescope (moved by hand) and see a bit of the H shape.
http://www.thevenustransit.com/2012/02/how-to-see-iss.html

Tim McDaniel February 15, 2012 at 7:38 AM

“If the ISS will be first be seen 40 degrees above the horizon …” Um, I don’t understand how an object orbiting the Earth first become visible above the horizon. (Barring clouds and trees and such, which the orbit programs can’t know.)

Anonymous February 15, 2012 at 9:32 AM

The key word here is “If” at times when the ISS is above the horizon it is also in the Earth’s shadow (in eclipse) and therefore not being lit by the Sun

Brian Sheen Roseland Observatory

Gez Quinn February 15, 2012 at 9:33 AM

Your title has 2 “the”s!

Meow Meow February 15, 2012 at 2:09 PM

What? i thought the satellite never been completed ?? all i read from news are space shuttle crashes and then this!!?!@#$%!!

john s February 15, 2012 at 4:36 PM

A good read, also not to forget http://www.n2yo.com/ and http://spaceflight1.nasa.gov/realdata/sightings/ And when you do look for the ISS lets hope its a clear night.

Anonymous February 15, 2012 at 6:40 PM

My best pic of the Space Station was taken outside my front door, through a blaze of street lights, and I hadn’t even intended photographing the ISS. I was waiting for Shuttle Endeavour, which had carried out de-orbit burn and was heading towards its last re-entry. I saw Endeavour sailing across our southern sky and took two time-exposures. I had the button down on the third and was about to release it when the Space Station came into view, several hundred kilometres behind Endeavour. So I held the button down for another twenty seconds and got both spacecraft in the same pic. I was, and still am, pretty pleased about that.

Facts About Earth February 19, 2012 at 6:39 AM

Is the ISS still okay to use if cloudy night? I am confused.

Olaf2 February 19, 2012 at 12:28 PM

I have absolutely no idea what you are talking about.
ISS is in orbit around Earth, far above the clouds.
It is not some kind of air plane that lands when there is bad weather.

Heather Cornwell February 23, 2012 at 6:20 PM

Just passed over my house in IG3 8LJ!

carolbrown13 February 28, 2012 at 4:52 PM

I did see the space station a couple of nights ago amazing experience!
