Gallery: 10 Years of Canadarm2, Construction Crane in Space

by Nancy Atkinson on April 19, 2011

Want to stay on top of all the space news? Follow @universetoday on Twitter

Canadarm2, the huge robotic arm on the International Space Station holds astronaut Stephen Robinson during the STS-114 mission. Credit: NASA

On April 19, 2001, space shuttle Endeavour’s STS-100 mission launched to the space station, and in the payload bay was Canadarm2, a larger, more robust successor to the shuttle’s Canadarm. The Space Station Remote Manipulator System (SSRMS) is a sophisticated “construction crane,” and is responsible for much of the successful building of the ISS — module by module — in space.

“She is without a doubt one of the most critical components on board station having participated in the construction of the spacecraft that is on orbit today,” said Mike Suffredini, Program Manager of the International Space Station. “Twenty-nine missions have been supported by Canadarm2, two of them capturing and berthing the HTV vehicle, and in all that time with absolutely flawless performance. Without her we couldn’t have gotten to where we are today.”

See a gallery of images of Canadarm2′s 10 years in the space construction business.

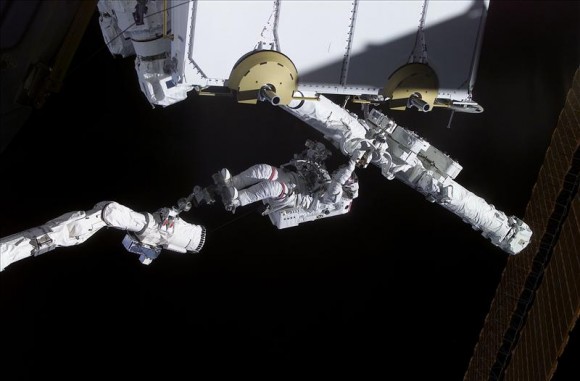

April 22, 2001 – History is made. Canadian Space Agency Astronaut Chris Hadfield, attached to Canadarm, installs the next-generation Canadarm2 to the International Space Station during Shuttle Mission STS-100. Credit: NASA

Canadarm2 was installed on the ISS by astronaut Chris Hadfield during the first spacewalk by a Canadian. Canadarm2 has unloaded hundreds of tons of equipment and supplies ferried by the shuttle and assisted almost 100 spacewalks. Endeavour’s last flight later this month will mark Canadarm2’s 28th Shuttle mission.

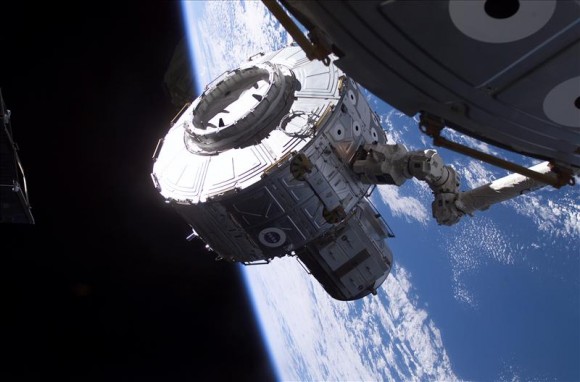

July 15, 2001 – Canadarm2 performs its first official task, attaching the Quest Airlock to the Unity module of the International Space Station during Shuttle Mission STS-104. Credit: NASA

The Canadian Space Agency says that Canadarm2’s role on the ISS will expand as the orbital lab nears completion: in addition to performing routine maintenance, the robotic arm will make more frequent “cosmic catches,” where it will capture, dock and later release visiting spacecraft, as it has done with the HTV. When the space shuttle retires, reusable commercial spacecraft, like SpaceX’s Dragon and Orbital’s Cygnus, will be used to bring supplies and equipment to the ISS. Canadarm2 will capture each of these visiting vehicles. In late 2011 and early 2012, Canadarm2 will capture a series of 6 commercial spacecraft in just 7 months, beginning with the Dragon spacecraft, currently scheduled to arrive in October 2011.

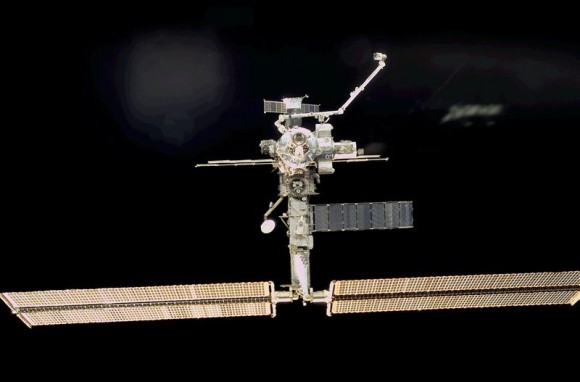

How the ISS looked back in 2001, with Canadarm2 showing prominently. Credit: NASA

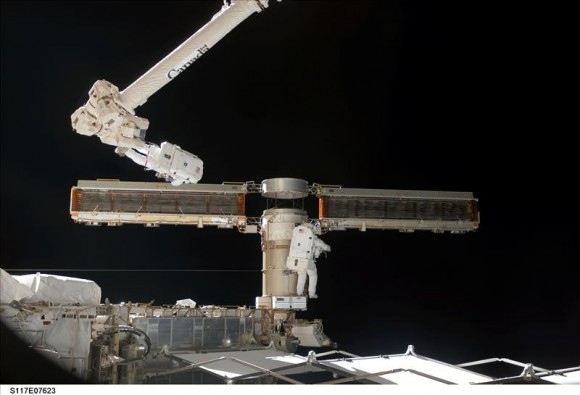

June 15, 2007 – Shuttle Mission STS-117 continued assembly operations that featured more work on the Station’s solar arrays. In this image, NASA astronaut Jim Reilly, attached to Canadarm2, and NASA colleague John “Danny” Olivas, are folding up an older solar panel so that it can be stowed and moved to another location on a future shuttle mission. Credit: NASA

November 3, 2007 – Canadarm2 played a big role in helping astronauts fix a torn solar array. The arm’s reach was extended by the Orbiter Boom Sensor System, and here, allowing astronaut Scott Parazynski analyses the solar panel while anchored to the boom. Credit: NASA

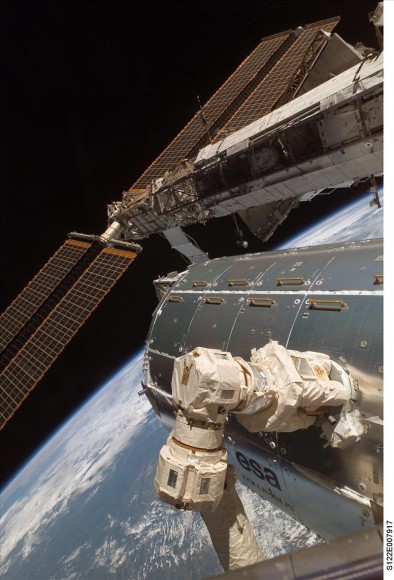

February 12, 2008 – Here, Canadarm2 has a firm grip on the European Space Agency’s Columbus module, which it grappled and attached to the station. Credit: NASA

More info on the SSRMS and how it was built:

The Expedition 27 crew on board the ISS pay tribute to 10 years of the SSRMS:

See more images and info at CSA’s website.
