NASA’s Nanosail-D Released into the Winds of Space

by Nicholos Wethington on December 6, 2010

Want to stay on top of all the space news? Follow @universetoday on Twitter

An artist's conception of the Nanosail-D satellite in all its glory. Set to unfurl later this week, Nanosail-D will be a milestone in solar sail technology. Image Credit: NASA

Despite being an idea rattling around inside the head of engineers and space enthusiasts for over 40 years, solar sails have never really gained much traction in the way of actual deployment. Today, NASA has taken an important step towards testing solar sail technology for use in future spacecraft.

The Nanosail-D spacecraft was launched Friday, Nov. 19 at 8:25 p.m. EST from Kodiak Island, Alaska, and was piggybacking on another satellite, both aboard a Minotaur IV rocket. It has successfully been ejected from the launch vehicle as of today, and is on its own. Though the sails have yet to deploy, this is already an achievement that bodes well for the future of both solar sail and small satellite technology.

The Nanosail-D satellite – commonly described as “loaf of bread” sized – was ejected from the Fast, Affordable, Science and Technology Satellite (FASTSAT) at 1:31 a.m. EST December 6th. Not only is this NASA’s first attempt at deploying a solar sail in space, but this also marks the first time a nanosatellite has been ejected from another satellite, proving that this is a reliable way to get multiple satellites into orbit at the same time.

Nanosail-D is a nanosatellite – or cubesat – designed to test the potential for solar sails in atmospheric braking. Such sails – made from a an ultra-thin and light material, in this case the polymer CP1 – could potentially be used to propel a spacecraft outside of our Solar System. The Nanosail-D sail will be deployed in low-Earth orbit, about 650 km (400 miles) up. The sail will be used to show how such technology could slow down satellites when they need to de-orbit.

Currently, de-orbiting satellites involves maneuvering them into a lower and lower orbit using the engines of the satellite, which necessitates more propellant aboard the spacecraft simply to dispose of it properly. Nanosail-D will deploy a solar sail and orbit for 70-120 days, eventually spiraling into the Earth’s atmosphere to burn up.

Since it will be orbiting so close to the Earth, its potential for testing solar sails as propulsion is not the focus of the mission; however, the deployment of a solar sail is itself a huge engineering challenge. Nanosail-D will be the perfect experiment to test out whether the method NASA will be using to unfurl the sail is workable in space.

Immediately after the ejection earlier today, a timer started a three-day countdown. Once it reaches zero, it will go boom – that is, four booms will spring out from the small satellite, and within five seconds the sail will be fully extended to its 100 square foot (10 square meter) sail-span.

The first Nanosail-D, unfurled in the lab with the mission team. Image Credit: NASA


Dean Alhorn, NanoSail-D principal investigator and aerospace engineer at the Marshall Space Flight Center explains on the mission page, “The deployment works in the exact opposite way of carpenter’s measuring tape. With a measuring tape, you pull it out, which winds up a spring, and when you let it go it is quickly pulled back in. With NanoSail-D, we wind up the booms around the center spindle. Those wound-up booms act like the spring. Approximately seven days after launch, it deploys the sail off the center spindle.”

There have been other attempts at launching and deploying solar sails before, but once deployed, Nanosail D will be the longest-running solar sail experiment yet attempted. Both JAXA and the Russian space agency have deployed successful solar sail experiments.

JAXA launched a clover-shaped sail aboard a sounding rocket in 2004, and the experiment lasted about 400 seconds. They also launched the IKAROS spacecraft in May, 2010, which is currently en-route to Venus, and will fly to the opposite side of Sun from Earth. The Russians deployed a 20-meter diameter mirror successfully aboard the Progress M-15 resupply mission to Mir in 1993. Named Znamya 2, the mirror cast a 5km (3 mile)-wide bright spot on the ground that swept across southern France to western Russia, and orbited for several hours before burning up.

The Planetary Society is probably the most vocal and enthusiastic organization in support of solar sail technology. They are currently developing a solar sail similar to that of Nanosail-D, called Lightsail-1. The society attempted a launch of a solar sail called Cosmos 1 in 2005, but the rocket carrying the satellite did not fire during its second stage, and the craft was lost.

Nanosail-D is in its second iteration. The first spacecraft was commissioned in early 2008, and the team – astrophysicists and engineers at the Marshall Space Flight Center and the Ames Research Center – had four months to put together a workable satellite. It launched aboard a Falcon 1 rocket in August of 2008, but the rocket burned up in the atmosphere. If engineers are good at one thing, it’s redundancy – the team had constructed a second Nanosail-D, and had ample time to work out some of the bugs and develop the technology even more.

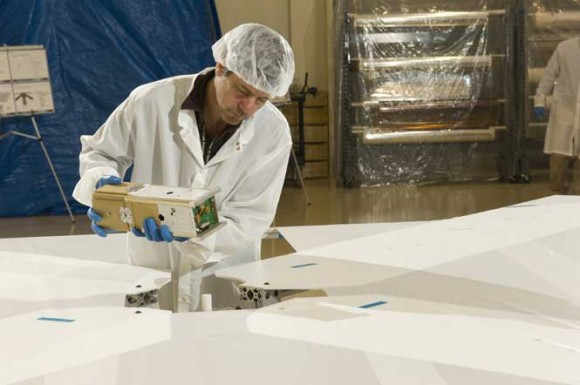

Doug Huie, a research technician at the University of Alabama in Huntsville, prepares the spacecraft for launch testing. The spacecraft measures 4 inches wide, 4 inches deep and 13 inches long, and weighs 9 pounds. (10cm X 10cm X 33 cm, 4kg) Image Credit: NASA


The Planetary Society almost had a chance to launch Nanosail-D, according to Louis Friedman, executive director of the The Planetary Society, they were contacted by the team developing Nanosail-D after the failed initial launch attempt, and asked if they would like to help launch the second Nanosail-D spacecraft. The Planetary Society agreed, but the team then found space aboard the FASTSAT launch. Consequently, Lightsail-D was borne out of this brief collaboration.

The timer is silently counting down what promises to be an exciting mission, and potential milestone in the future of spaceflight. Watch this space for further developments on the mission.

Sources: NASA press release, The Planetary Society, NASA Science, NASA Nanosail-D fact-sheet

Manu December 6, 2010 at 1:10 PM

Don’t you forget someone? ;)
http://en.wikipedia.org/wiki/IKAROS

Astrofiend December 6, 2010 at 1:57 PM

Was going to say – what about IKAROS?!!

Must say, I find it pretty average that the first NASA-deployed sail will be used to test deorbiting capability rather than for actual propulsion. BORING! Oh well, hopefully it gives them the technical experience to put together a far more interesting solar sail mission.

Nicholos Wethington December 6, 2010 at 4:42 PM

@Manu: That’s what I get for trying to cram the history of solar sailing into two paragraphs. I updated it with the IKAROS info.
@Astrofiend: Yeah, it would be cooler if they were using it for propulsion. But deceleration is acceleration anyways, right? And you gotta start somewhere, I guess.

GBendt December 7, 2010 at 2:07 AM

This sail is not a sail, it acts more like an air brake working in the the thin high altitude atmosphere.
The concept of sailing to a certain place by using the solar wind is a futile one. The solar wind isnĀ“t a wind, it is a fast vacuum.

Run December 7, 2010 at 4:59 AM

It’s my understanding that a solar sail doesn’t use the solar wind (which wouldn’t be present in Earth orbit anyway, thanks to Earth’s magnetosphere), but uses the ‘pressure’ of light itself to generate momentum.

This article does need clarification though, as it does seem like the craft would be braking in the thin atmosphere…. perhaps NASA scientists will account for any atmospheric effect and calculate any extra force from sunlight?

Also, how exactly is the craft orbiting? Presumably it will slow down as it approaches the sun, but then speed up again when it orbits away from it.

Torbjorn Larsson OM December 7, 2010 at 2:33 AM

It has been confirmed that IKAROS is accelerated by its sail. Nothing precludes this acceleration to be used as propelling force outwards the sun, and in fact it has been suggested as one of the more realistic ways of traveling between stars.

GBendt, you should get unbendt and study actual solar sail technology; it isn’t using the solar wind (much) but (mostly) the solar radiation pressure. Space isn’t a “fast vacuum” whatever that is, but a volume filled with fields and radiation, especially close to stars.

In fact, this is even more interesting now that scientists have shown that light can create lift in “spacefoils”. From sailing IKAROS to “spaceodynamic” Ikaros!?

Emilio December 7, 2010 at 4:10 AM

>The concept of sailing to a certain place by using the solar wind is a futile one.

May be, but it needs to be tested to see who is right you know. Deployment and attitude control is a big problem. I am not sure if Nanosail configuration will work as an air braking device. Looks like It is going to fly like a leaf out of control. Or may be not. CG of satellite seems little below the center of air pressure, 3 inches? It may be self pointing. Who knows, it will be interesting to see.

Quasy December 7, 2010 at 7:02 AM

“marks the first time a nanosatellite has been ejected from another satellite, proving that this is a reliable way to get multiple satellites into orbit at the same time”

How can a one time event, prove the reliability of the system?
It can prove the feasibility, but not reliability…
