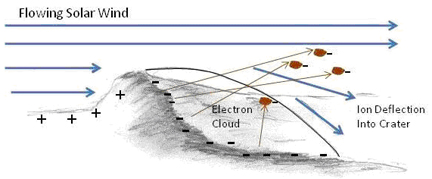

Graphic of how the solar wind flows over the Moon.  Credit: NLSI

Shocking! Lunar Craters May Be Electrified

Article Updated: 24 Dec , 2015

by

The Moon keeps getting more interesting all the time! But now comes “shocking” news that exploring polar craters could be much harder and more dangerous than originally thought. New research shows that as the solar wind flows over natural obstructions on the moon, such as the rims of craters at the poles, the craters could be charged to hundreds of volts. “In a nutshell, what we’re finding is that the polar craters are very unusual electrical environments, and in particular there can be large surface charging at the bottom of these craters,” said William Farrell from Goddard Space Flight Center, lead author of a new research on the Moon’s environment.

The moon’s orientation to the sun keeps the bottoms of polar craters in permanent shadow, allowing temperatures there to plunge below minus 400 degrees Fahrenheit, cold enough to store volatile material like water for billions of years. And of course, any resources that may lie in those craters are of interest for any future explorers, should astronauts ever return to the Moon.
[/caption]
“However, our research suggests that, in addition to the wicked cold, explorers and robots at the bottoms of polar lunar craters may have to contend with a complex electrical environment as well, which can affect surface chemistry, static discharge, and dust cling,” said Farrell, who is part of a lunar Dream Team — the Lunar Science Institute’s Dynamic Response of the Environment at the moon (DREAM) project, which is also part of NASA’s Lunar Science Institute.

Solar wind inflow into craters can erode the surface, which affects recently discovered water molecules. Static discharge could short out sensitive equipment, while the sticky and extremely abrasive lunar dust could wear out spacesuits and may be hazardous if tracked inside spacecraft and inhaled over long periods.

The solar wind is a thin gas of electrically charged components of atoms – negatively charged electrons and positively charged ions — that is constantly blowing from the surface of the sun into space. Since the moon is only slightly tilted compared to the sun, the solar wind flows almost horizontally over the lunar surface at the poles and along the region where day transitions to night, called the terminator.

The researchers created computer simulations to discover what happens when the solar wind flows over the rims of polar craters. They discovered that in some ways, the solar wind behaves like wind on Earth — flowing into deep polar valleys and crater floors. Unlike wind on Earth, the dual electron-ion composition of the solar wind may create an unusual electric charge on the side of the mountain or crater wall; that is, on the inside of the rim directly below the solar wind flow.

Since electrons are over 1,000 times lighter than ions, the lighter electrons in the solar wind rush into a lunar crater or valley ahead of the heavy ions, creating a negatively charged region inside the crater. The ions eventually catch up, but rain into the crater at consistently lower concentrations than that of the electrons. This imbalance in the crater makes the inside walls and floor acquire a negative electric charge. The calculations reveal that the electron/ion separation effect is most extreme on a crater’s leeward edge – along the inside crater wall and at the crater floor nearest the solar wind flow. Along this inner edge, the heavy ions have the greatest difficulty getting to the surface. Compared to the electrons, they act like a tractor-trailer struggling to follow a motorcycle; they just can’t make as sharp a turn over the mountain top as the electrons.

“The electrons build up an electron cloud on this leeward edge of the crater wall and floor, which can create an unusually large negative charge of a few hundred Volts relative to the dense solar wind flowing over the top,” said Farrell.

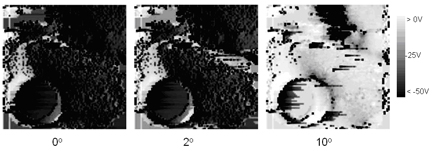

The negative charge along this leeward edge won’t build up indefinitely. Eventually, the attraction between the negatively charged region and positive ions in the solar wind will cause some other unusual electric current to flow. The team believes one possible source for this current could be negatively charged dust that is repelled by the negatively charged surface, gets levitated and flows away from this highly charged region. “The Apollo astronauts in the orbiting Command Module saw faint rays on the lunar horizon during sunrise that might have been scattered light from electrically lofted dust,” said Farrell. “Additionally, the Apollo 17 mission landed at a site similar to a crater environment – the Taurus-Littrow valley. The Lunar Ejecta and Meteorite Experiment left by the Apollo 17 astronauts detected impacts from dust at terminator crossings where the solar wind is nearly-horizontal flowing, similar to the situation over polar craters.”

“This important work by Dr. Farrell and his team is further evidence that our view on the moon has changed dramatically in recent years,” said Gregory Schmidt, deputy director of the NASA Lunar Science Institute at NASA’s Ames Research Center, Moffett Field, Calif. “It has a dynamic and fascinating environment that we are only beginning to understand.”

Next steps for the team include more complex computer models. “We want to develop a fully three-dimensional model to examine the effects of solar wind expansion around the edges of a mountain. We now examine the vertical expansion, but we want to also know what happens horizontally,” said Farrell. As early as 2012, NASA will launch the Lunar Atmosphere and Dust Environment Explorer (LADEE) mission that will orbit the moon and could look for the dust flows predicted by the team’s research.

The research was published March 24 in the Journal of Geophysical Research.

Source: NLSI

,
