Messier 12 (M12) – The NGC 6118 Globular Cluster

2 May , 2016 by

Welcome back to another edition of Messier Monday! Today, we continue in our tribute to Tammy Plotner with a look at the M12 globular cluster!

In the 18th century, French astronomer Charles Messier noted the presence of several “nebulous objects” in the night sky which he originally mistook for comets. After realizing his mistake, he began compiling a list of these objects in order to ensure that other astronomers did not make the same error. In time, this list would include 100 objects, and would come to be known as the Messier Catalog to posterity.

One the many objects included in this is Messier 12 (aka. M12 or NGC 6218), a globular cluster located in the Ophiuchus constellation some 15,700 light-years from Earth.  M12 is positioned just 3° from the cluster M10, and the two are among the brightest of the seven Messier globulars located in Ophiuchus. It is also interesting to note that M12 is approaching our Solar System at a velocity of 16 km/s.

Description:

Influencing about 75 light years of space in a spherical area, this loose globular cluster was once believed to be a tightly concentrated open cluster. With most of its low-mass stars carried away by the gravitational influence of the Milky Way, M12 contains only 13 variable stars. As Dr. Guido De Marchi of the European Space Agency noted in a study about M12,

“In the solar neighborhood and in most stellar clusters, the least massive stars are the most common, and by far. Our observations with ESO’s VLT show this is not the case for Messier 12… It is however clear that Messier 12 is surprisingly devoid of low-mass stars. For each solar-like star, we would expect roughly four times as many stars with half that mass. Our VLT observations only show an equal number of stars of different masses.”

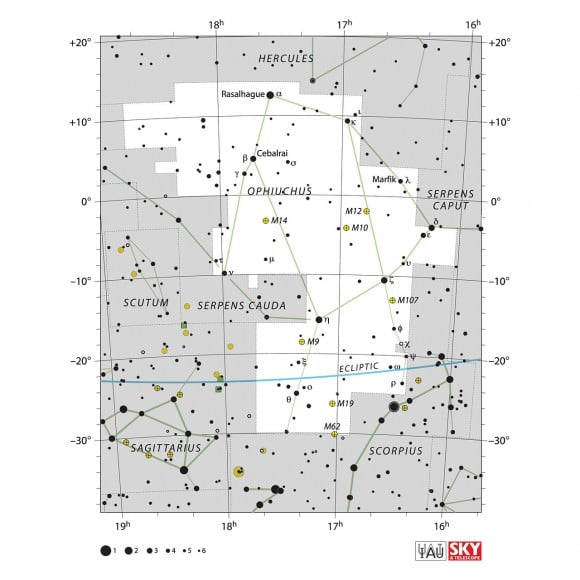

The constellation Ophiuchis. Credit: iau.org

The constellation Ophiuchis. Credit: iau.org

Additional studies that were carried out by Luigi Pulone and Francesco Paresce (INAF, Italy), measured the brightness and colors of more than 16,000 stars (many of which are 40 million times fainter than what is typically detectable with the human eye) within the globular cluster Messier 12 with the VLT at Cerro Paranal.

Since globular clusters travel in extended elliptical orbits which pass through the dense regions of the galactic plane, smaller stars can literally be ripped away from one form of gravitational attraction towards a greater one. “We estimate that Messier 12 lost four times as many stars as it still has”, said Francesco Paresce. “That is, roughly one million stars must have been ejected into the halo of our Milky Way.”

But how much longer can M12 make it around our galaxy before it is stripped of all of its stars? Estimates indicate that it has perhaps another 4.5 billion years – about a third its current age. Not long, considering the typical life expectancy of a globular cluster is about 20 billion years. And in the course of its lifetime so far, the cluster has certainty evolved, and is presently home to a host of red giant stars.

According to studies performed by E. Carretta (et al), this is one heavy metal cluster:

“Our results indicate that NGC 6218 is very homogeneous as far as heavy elements are concerned. On the other hand, light elements involved in the well known proton-capture reactions of H-burning at high temperature, such as O and Na, show large variations, anticorrelated with each other, at all luminosities along the red giant branch. The conclusion is that the Na-O anticorrelation must be established in early times at the cluster formation.”

M12, captured with an amateur telescope. Credit: Hewholooks

Messier 12, captured with an amateur telescope. Credit: Hewholooks

History of Observation:

M12 is one of Charles Messier’s original discoveries, found on May 30th, 1764. As his notes indicate, he was unable to resolve the stars with his telescope; and like other objects, he believed it to be a nebula:

“In the same night of [May] 30 to 31, 1764, I have discovered a nebula in Serpens, between the arm and left side of Ophiuchus, according to the charts of Flamsteed: That nebula doesn’t contain any star; it is round, its diameter can be 3 minutes of arc, its light is faint; on sees it very well with an ordinary [non-achromatic] refractor of 3 feet [FL]. I have determined its position, by comparing with the star Delta Ophiuchi; its right ascension has been concluded at 248d 42′ 10″, and its declination at 1d 30′ 28″ south. I have marked it in the chart of the apparent path of the Comet which I have observed last year [the comet of 1769].”

Although Sir William Herschel would be the first to resolve Messier 12 into stars in 1785, his son John would later describe it best in 1828. As he recorded in his notes:

“…has stragglers in lines and branches extending some distance from the most condensed part, which is 3′ diam. Comes almost up to a blaze in the middle, has a * 10.11 m in the centre. Very rich globular cluster. The stars are of 10th to 16th magnitude; very gradually much brighter toward the middle, but has stragglers in lines and branches extending some distance from the most condensed part, which is 3′ in diameter. Comes almost up to a blaze in the middle, has a star of 10th or 11th magnitude in the centre.”

The Central Part of Messier 12. Credit: ESO

The central part of Messier 12. Credit: ESO

Locating Messier 12:

Using binoculars, M12 is can be seen in the same field as the globular cluster M10. It can be located by finding the Ophiuchi constellation, then looking about half a fistwidth west of Beta Ophiuchi. M12 is the northernmost of this pair and will appear slightly fainter. To help orient yourself to the correct area, identify Beta Scorpii as your first starhop marker.

Slightly more than a fistwidth north, you will see the twin Yed stars of Delta and Epsilon. To the northeast are another close, bright pairing – Beta and Gamma Ophiuchi. M10 and M12 are about 1/3 the distance between the twin Yeds and the Beta/Gamma pair. Both are bright enough to be seen as a small, fuzzy patch in the finderscope.

Using binoculars, M12 will forever remain a hazy patch, but intermediate-sized telescopes will reveal this beauty looking almost like a “gone to seed” dandelion set against the dark night sky. And for your convenience, here are the quick facts on Messier Object 12:

Object Name: Messier 12
Alternative Designations: M12, NGC 6218
Object Type: Class IX Globular Cluster
Constellation: Ophiuchus
Right Ascension: 16 : 47.2 (h:m)
Declination: -01 : 57 (deg:m)
Distance: 16.0 (kly)
Visual Brightness: 6.7 (mag)
Apparent Dimension: 16.0 (arc min)

As always, enjoy your stargazing!

We have written many interesting articles about Messier Objects here at Universe Today. Here’s Tammy Plotner’s Introduction to the Messier Objects, , M1 – The Crab Nebula, M8 – The Lagoon Nebula, and David Dickison’s articles on the 2013 and 2014 Messier Marathons.

Be to sure to check out our complete Messier Catalog. And for more information, check out the SEDS Messier Database.

, , , , , ,
