Oct. 7, 1959 – Our First Look at the Far Side of the Moon

For millennia, human eyes have seen only one face of the moon. Put a dude from the Iron Age in a time machine and whisk him to 2013 and he’d see the same pattern of light lunar highlands punctuated by dark grey spots you see. Night after night after night.

Telephoto view of the far side with Mare Smythii (Sea of Smyth) at left and bright crater Giordano Bruno at center. Credit: Roscosmos
Telephoto view of the far side with Mare Smythii (Sea of Smyth) at left and bright crater Giordano Bruno at center. Credit: Roscosmos

That all changed 54 years ago today when the Soviet Union’s Luna 3 probe opened its camera shutter and snapped the first pictures of the lunar far side. Though blurry and banded with electronic noise, everyone who saw them sat up in surprise. The backside barely resembled the front. It lacked in the familiar lunar maria, the dark spots that we instinctively patch together to form the face of the “man in the moon”.

Telephoto image of Mare Moscoviense is at upper right with Tsiolkovsky and its bright central peak at lower right. You can start to see vague outlines of many more craters in this view. Click for more historic photos. Credit: Roscosmos
Telephoto image of Mare Moscoviense is at upper right with Tsiolkovsky and its bright central peak at lower right. You can begin to see vague outlines of many more craters in this picture. Click for more historic photos. Credit: Roscosmos

Only two dark ovals were seen, Mare Moscoviense (Sea of Moscow) and the lava-filled floor of the crater Tsiolkovsky, named for Konstantin Tsiolkovksy, the Russian rocket pioneer. The rest, which looks like dried paste, is jammed with craters and related the near side’s light-toned, cratered highlands. Both are remnants of the original lunar crust that solidified as the moon cooled after formation.

The dramatic difference between near side and far side shows up in this much more recent global map of the map made by Clementine Mission in 1994. The map is centered on the near side with its many lunar "seas" or maria. The far side trails off to the left and right of center. Mare Moscoviense is at upper right. Credit: NASA
The dramatic difference between near side and far side shows up in this much more recent global map of the map made by Clementine Mission in 1994. The map is centered on the near side with its many lunar “seas” or maria. The far side trails off to the left and right of center. Mare Moscoviense is at upper right. Credit: NASA

Darker areas or “seas” are more recent basaltic lavas that welled up to fill huge impact scars left by colliding asteroids. They contain iron-rich minerals from deep beneath the crust which make them less reflective, hence darker in comparison to the highlands.

Tidal locking results in the Moon rotating about its axis in about the same time it takes to orbit the Earth (left side). If the Moon didn't spin at all, then it would alternately show its near and far sides to the Earth while moving around our planet in orbit, as shown in the figure on the right. Credit: Wikipedia
Tidal locking results in the moon rotating about its axis in about the same time it takes to orbit the Earth (left side). If the Moon didn’t spin at all, then it would alternately show its near and far sides to the Earth while moving around our planet in orbit, as shown in the figure on the right. Credit: Wikipedia


The moon hides its back or far  side through a neat trick – it rotates at the same rate as it revolves around the Earth. Normally, rotation would bring new features into view, but every little bit it turns, it moves an equal amount along its orbit, hiding what would otherwise be exposed. It’s called synchronous rotation or tidal locking. Most of the larger moons in the solar system are tidally locked to their planets. Jupiter’s four biggest and brightest moons are a great example.

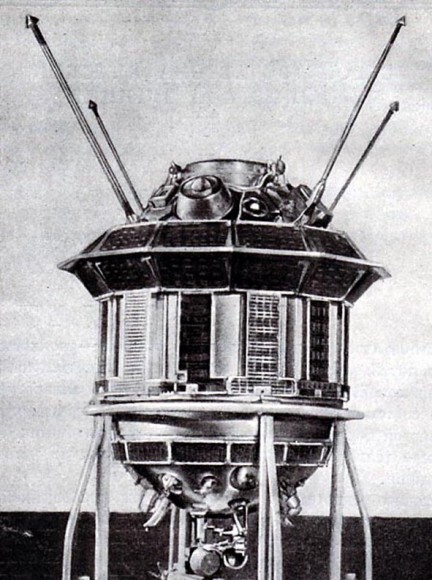

Luna 3 probe sent to the moon by the then Soviet Union. It held two cameras and its own film processing lab. Credit: NASA
Luna 3 probe sent to the moon by the then Soviet Union. It held two cameras and its own film processing lab. Credit: NASA

Equipped with both wide angle (200 mm) and telephoto (500 mm) lenses, Luna 3 took 29 pictures covering about 70 percent of the far side during its loop around the moon. The first picture was shot from 39,500 miles away (63,500 km), the last taken 40 minutes later from 41,445 miles (66,700 km) distant. After the photo session was done, the probe passed over the moon’s north pole and headed back toward Earth.

Temperature and radiation-resistant film used for the photos was automatically moved to an onboard processor where it was developed, fixed and dried. A cathode ray tube then shot a beam of light through the film and onto a photoelectric multiplier, a light-sensitive device that converted the different gradations of tone into electric signals which were then transmitted to Earth. Almost sounds like a fire brigade, but hey it worked!

High resolution photo map of the moon's far side imaged by NASA's Lunar Reconnaissance Orbiter. Mare Moscoviense lies at upper left and Tsiolkovsky at lower left. Click for a hi res image. Credit: NASA
High resolution photo map of the moon’s far side imaged by NASA’s Lunar Reconnaissance Orbiter. Mare Moscoviense lies at upper left and Tsiolkovsky at lower left. Click for a hi res image. Credit: NASA

So what’s the reason for the moon’s split personality? We know the far side crust is 50 miles (80 km) thick versus 37 miles (60 km) for the near side. A thicker far side crust may have prevented magma from reaching and flooding the surface as they did on the near side. Heat released by the decay of radioactive elements also may play a role. NASA’s Lunar Prospector probe found more on the near side, where they may have encouraged the formation of hot magmas that eventually found their way to the surface.

What caused the fascinating asymmetry is unknown, but it may have to do with the slowing of the moon’s rotation into its present tidally-locked state under the heavy hand of Earth’s dominating gravitational influence.
