Latest Chandrayaan-1 Images

by Nancy Atkinson on January 17, 2009

Want to stay on top of all the space news? Follow @universetoday on Twitter

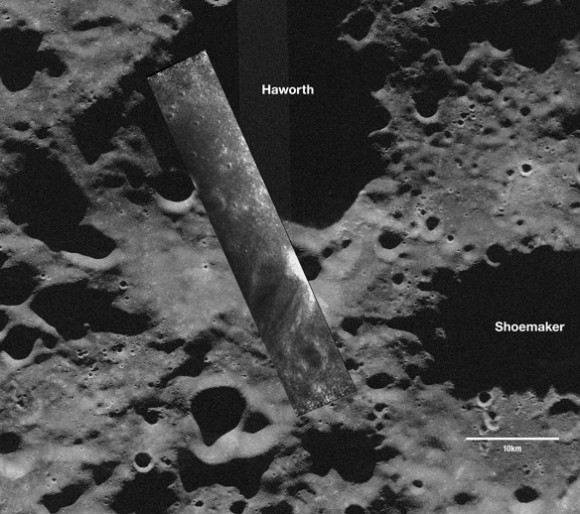

A Mini-SAR strip overlain on an Earth-based, Arecibo Observatory radar telescope image. Taken Nov. 17, 2008, the south-polar SAR strip shows a part of the moon never seen before: a portion of Haworth crater that is permanently shadowed from Earth and the sun. Credit: ISRO/NASA/JHUAPL/LPI/Cornell University/Smithsonian

A Mini-SAR strip overlain on an Earth-based, Arecibo Observatory radar telescope image. Taken Nov. 17, 2008, the south-polar SAR strip shows a part of the moon never seen before: a portion of Haworth crater that is permanently shadowed from Earth and the sun. Credit: ISRO/NASA/JHUAPL/LPI/Cornell University/Smithsonian


A few “new” images have been released from the Chandrayaan-1 lunar orbiter mission. The latest are the first images from NASA’s radar instrument that’s hitching a ride on board the Indian Space Research Organization’s (ISRO) spacecraft. Called the Mini-SAR (synthetic aperture radar), NASA’s instrument recently passed initial in-flight tests and sent back its first data from Nov. 17, 2008, showing the first look inside one of the Moon’s coldest, darkest craters. The image above shows a swath from the Mini-SAR overlaid on a ground-based telescope image of Haworth Crater. The swath shows the floor of this permanently-shadowed polar crater on the moon that isn’t visible from Earth. The instrument will map both polar regions to search the insides of craters for water ice.

“The only way to explore such areas is to use an orbital imaging radar such as Mini-SAR,” said Benjamin Bussey, deputy principal investigator for Mini-SAR, from the Johns Hopkins University Applied Physics Laboratory. “This is an exciting first step for the team which has worked diligently for more than three years to get to this point.”

Bright areas represent surface roughness or slopes pointing toward the spacecraft. The data cover an area approximately 50 kilometers (31 miles) by 18 kilometers (11 miles).

The two north-polar strips have been mosaicked to show the western rim of Seares crater.Credit: ISRO/NASA/JHUAPL/LPI  Click for larger image

The two north-polar strips have been mosaicked to show the western rim of Seares crater.Credit: ISRO/NASA/JHUAPL/LPI Click for larger image


Two more radar swaths from the Moon’s north pole have been stitched together to show the western rim of Seares crater. The mosaic covers an area roughly 80 kilometers (50 miles) long by 20 kilometers (12.5 miles) wide.

“During the next few months we expect to have a fully calibrated and operational instrument collecting valuable science data at the moon,” said Jason Crusan, program executive for the Mini-RF Program, which also includes a radar instrument on the upcoming Lunar Reconnaissance Orbiter mission

Mini-SAR is one of 11 instruments on Chandrayaan 1. Not setting any speed records in making the images available to the public, a few other images were recently released that were also taken in November 2008. Mission managers have had to deal with the spacecraft overheating slightly due to orbiting in almost continual sunlight, and therefore they decided to use only one instrument at a time. Normal operations should begin soon, where all the instruments will be able to function normally and together.

Moon 3D from the TMC.  Credit:  ISRO

Moon 3D from the TMC. Credit: ISRO

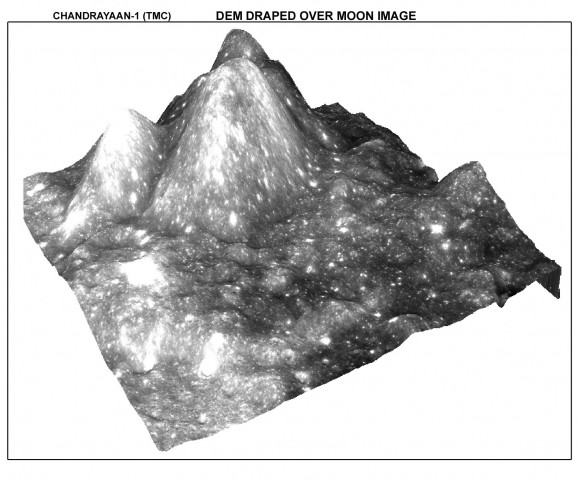

This Digital Elevation Model of the lunar surface was generated by using imagery from India’s Terrian Mapping Camera. The TMC will map topography on both sides of the Moon and prepare a 3-dimensional atlas with high spatial and altitude resolution.
Lunar crater from the TMC.  Credit:  ISRO

Lunar crater from the TMC. Credit: ISRO

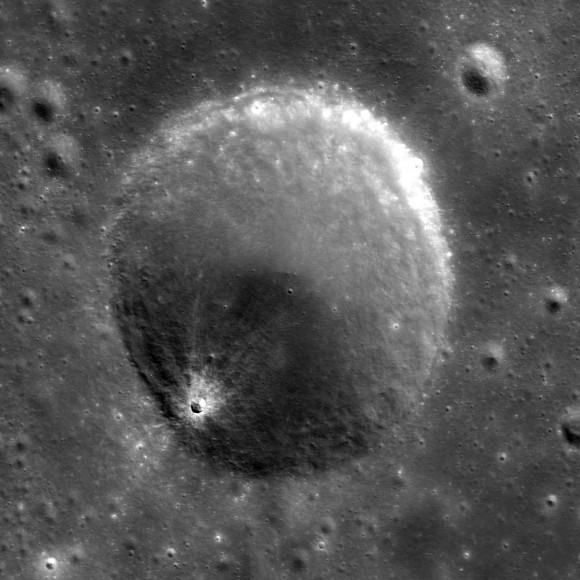

This image, also from the TMC, shows details of a lunar crater.
3D anaglyph from the TMC.  Credit:  ISRO

3D anaglyph from the TMC. Credit: ISRO

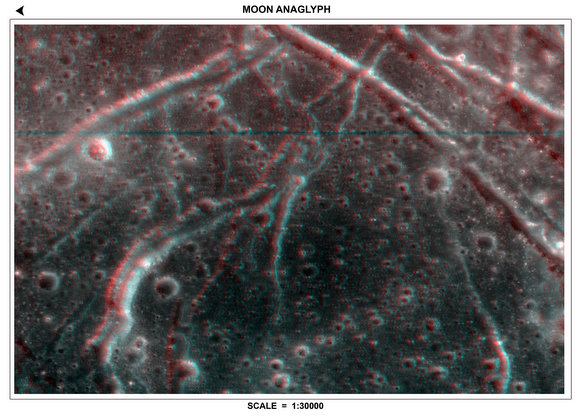

Here’s one of several 3D images of different regions of lunar surface captured by TMC. By looking through 3D glasses, you get a grasp of the height of features shown here. More 3D anaglyph images are available on the ISRO site.

Chandrayaan-1 launched from India on Oct. 21, 2008 and began orbiting the moon Nov. 8.

Sources: NASA, ISRO,
