Radical New Steering Thruster Tested

by Fraser Cain on November 15, 2007

Want to stay on top of all the space news? Follow @universetoday on Twitter

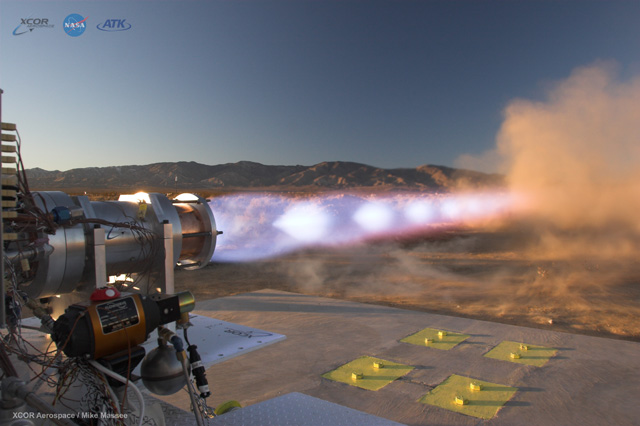

Test of XCOR Engine. Image credit: NASA/XCOR
With the shuttle and station in the news these days, it’s easy to forget there’s a whole other space program in the works: Constellation. Over the next decade, we’ll go back to the Moon – this time to stay. Although it’s inspired by the Apollo program, each piece of hardware is being updated with the latest technology. This week a radical new type of engine was tested at Northrop Grumman; an engine that could help steer spacecraft in space.

Northrop Grumman, one of the contractors on the NASA Constellation Program, announced this week that they’ve tested a new rocket called the TR408.

First a little history. The original Apollo program used thrusters powered by fuels that could be stored at room temperature, but they weren’t very powerful. Furthermore, they were made with toxic chemicals that could be a risk to astronauts and workers.

The new TR408 engine is a hybrid, which can run on almost any state of oxygen and methane. It could be all gas, for example, stored at room temperature. Or it could be all liquid, similar to the liquid oxygen/hydrogen that powers the space shuttle.

The engine was tested for more that 50 separate tests, and was able to generate a steady-state specific impulse of 340 seconds. Just to give you some context, the Apollo thrusters generated a specific impulse of 290 seconds. The shuttle’s liquid hydrogen/oxygen engine gets about 450 seconds.

Although the TR408 doesn’t match up to the efficiency of liquid hydrogen/oxygen, it looks like it’ll be a great compromise for the unique requirements of space travel.

There are more advantages. The TR408 is a very simple design, consisting of only two propellant valves, and no other moving parts. Less moving parts, means less things that can break. They should also be relatively inexpensive to build.

Northrup Grumman was awarded the contract to develop the engine for NASA 16 months ago, and they’re pleased with the progress so far.

Although this engine is designed for low thrust tasks, like steering a spacecraft, more powerful versions are in the works. NASA engineers recently tested a methane/liquid oxygen rocket for 103 seconds, and XCOR Aerospace is working on a version that was tested in a vacuum chamber.

Original Source: Northrop Grumman News Release

About

Fraser Cain is the publisher of Universe Today. He's also the co-host of Astronomy Cast with Dr. Pamela Gay.

James M. Essig December 12, 2007 at 10:17 PM

This is a really cool development.. One can well imagine this engine technology becomming a workhorse for manned missions within the solar system given the vast reserves of natural methane that appear to be located within the planetary bodies of our solar system. One can even imagine a very large 10 staged oxygen methane rocket powered space craft wherein the initial total mass of the space craft would be about 1000 times the mass of the payload but wherein the terminal velocity of such a space craft would be about 40 kilometers/sec without gravity assists. To slow down, the initial mass of the space craft would need to be 1 million times the final slowed paylload.

If it was desired to sent a huge space ark with a final payload mass of 1 trillion tons with intitial mass of 10 EXP 18 metric tons, then trips to any of the nearest stars might be possible in under 100,000 thousand years.

Obviously, nuclear rockets such as nuclear fusion rockets could in theory reach any of the nearby stars in half a normal human lifetime with a initial fuel to final payload mass ratio of only 10, and antimatter/matter rockets could reach any of the stars within a 40 light year radius (of which there are many hundreds) in the same time period with a fuel to final payload ratio on the order of unity using magnetic breaking to slow down, there might be some reason why huge nonrelativistic space arks would be designed and launched to ply the depths of the Milky Way Galaxy over a period of hundreds of millions of years wherein extreme measures for avoiding impacts with interstellar debris would be largely avoided.

At the very least, this technology offers humanity a way to tool around the solar system over the next half century until nuclear fusion rockets, antimatter rockets, interstellar ramjets, and long distance beamed energy sailing ships can be designed and fielded.

That’s all for now.

Jim
